Hammond Transformers
Premium guitar amplifier power transformers, output transformers and chokes.

Our Part#	OEM Part#	Type	Rating
APD-1751M	P-T1751M	Push Pull	15W 8K CT 4/8/16K Ohm

Alternates:

Reference#: P-T1751M Tweed Vibrolux 5F11

Description:

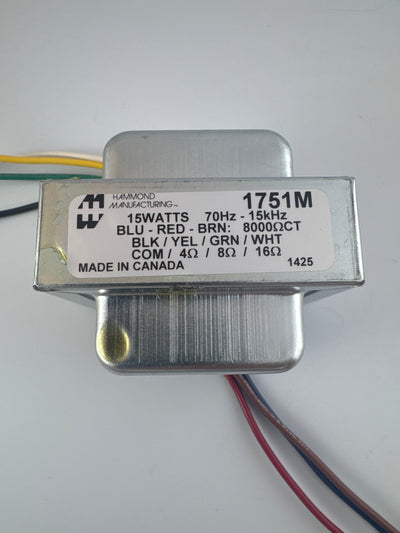

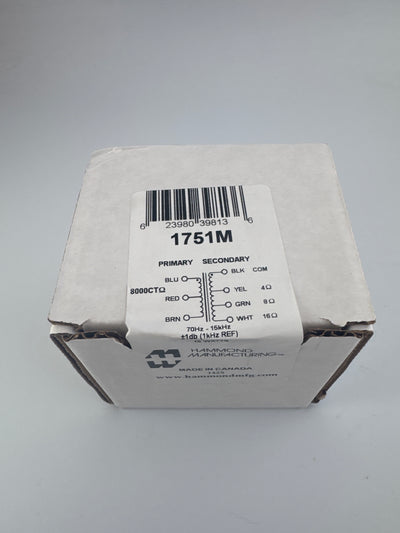

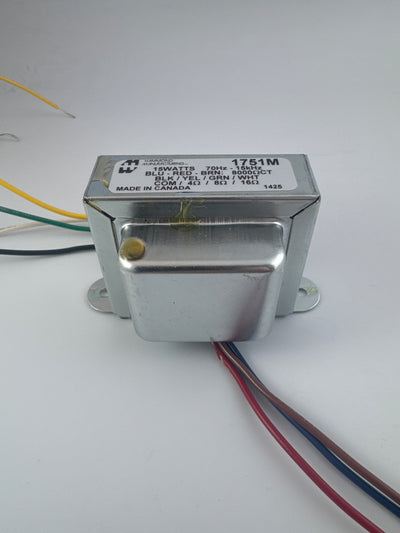

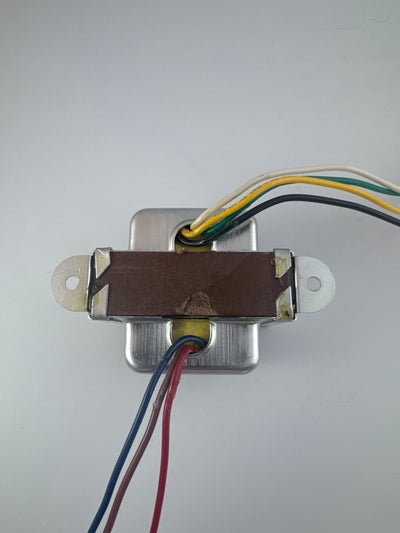

Transformer - Hammond - Output for Fender 15W 8K ohm

Push Pull 15W Bobbin

Replacements for Fender Amps
Designed for drop in replacement of original units.
Physically, parts were designed to look similar to original factory units (where possible).
Material used & design specs. were kept as close as possible to the original part to preserve the stock "tone".
Output transformers marked UPGRADE (below) allow for more versatility by added secondary connections that did not exist on the original units.

Primary Ohms 8,000 Ohm C.T.

Secondary 4 Ohm

15W

Used in: Tweed Vibrolux, Tremolux 5F11

Classictone.net 40-18025, Classictone 40-18025, Classictone 40-18025, Classictone

Classictone 40-18025, Classictone 40-18025, Classictone, Classictone 40-18025

Classictone 40-18025, Classictone 40-18025, Classictone.net 40-18025

Return Policy
Because these are electronic components, returns are only accepted on Damaged, DOA or Unused units only.
Return shipping costs are the responsibility of the purchaser.
Prior approval is required for all returns. Contact Sales for an RMA Number.
Returns are subject to a restocking fee equal to any Credit Card, eBay or PayPal fees associated with the original transaction.

*Disclaimer: All of the above listed amplifier models are trademarks of their original manufacturers.

Transformer - Hammond - Output Replacement for Fender 15W 4K Ohm- APD-1751M
