Hammond Transformers
Premium guitar amplifier power transformers, output transformers and chokes.

Our Part#	OEM Part#	Type	Rating
APD-1760J	P-T1760J	Output	40W 4/8/16K Ohm

Alternates:

Reference#: P-T1760J #125A6A and #022848

Description:

Transformer - Hammond - Output for Fender 40W 4K ohm - Upgrade

Push Pull 40W Bobbin

Replacements for Fender Amps
Designed for drop in replacement of original units.
Physically, parts were designed to look similar to original factory units (where possible).
Material used & design specs. were kept as close as possible to the original part to preserve the stock "tone".
Output transformers marked UPGRADE allow for more versatility by added secondary connections that did not exist on the original units.

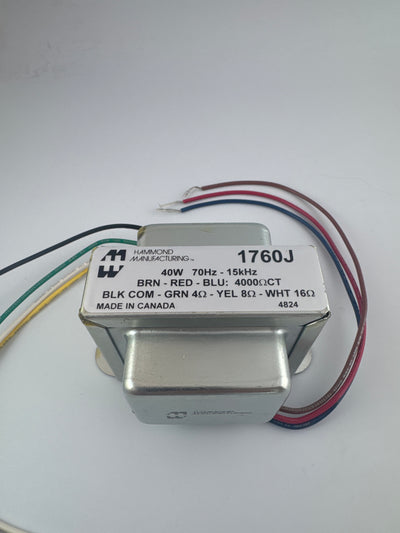

Primary Ohms 4,000 Ohm C.T.

Secondary 4 Ohm

Used in: Vibrolux, Tremolux, Pro-Reverb, Bandmaster

Classictone.net 40-18025, Classictone 40-18025, Classictone 40-18025, Classictone

Classictone 40-18025, Classictone 40-18025, Classictone, Classictone 40-18025

Classictone 40-18025, Classictone 40-18025, Classictone.net 40-18025

Return Policy
Because these are electronic components, returns are only accepted on Damaged, DOA or Unused units only.
Return shipping costs are the responsibility of the purchaser.
Prior approval is required for all returns. Contact Sales for an RMA Number.
Returns are subject to a restocking fee equal to any Credit Card, eBay or PayPal fees associated with the original transaction.

*Disclaimer: All of the above listed amplifier models are trademarks of their original manufacturers.

Transformer - Hammond - Output Replacement for Fender Upgrade - 40W 4K Ohm- APD-1760J
