| Our Part# | OEM Part# | Type | Rating |
| APD-269JX | P-T269JX | High Voltage | See Below |
| Alternates: |
|
Reference#: P-T269JX |
|

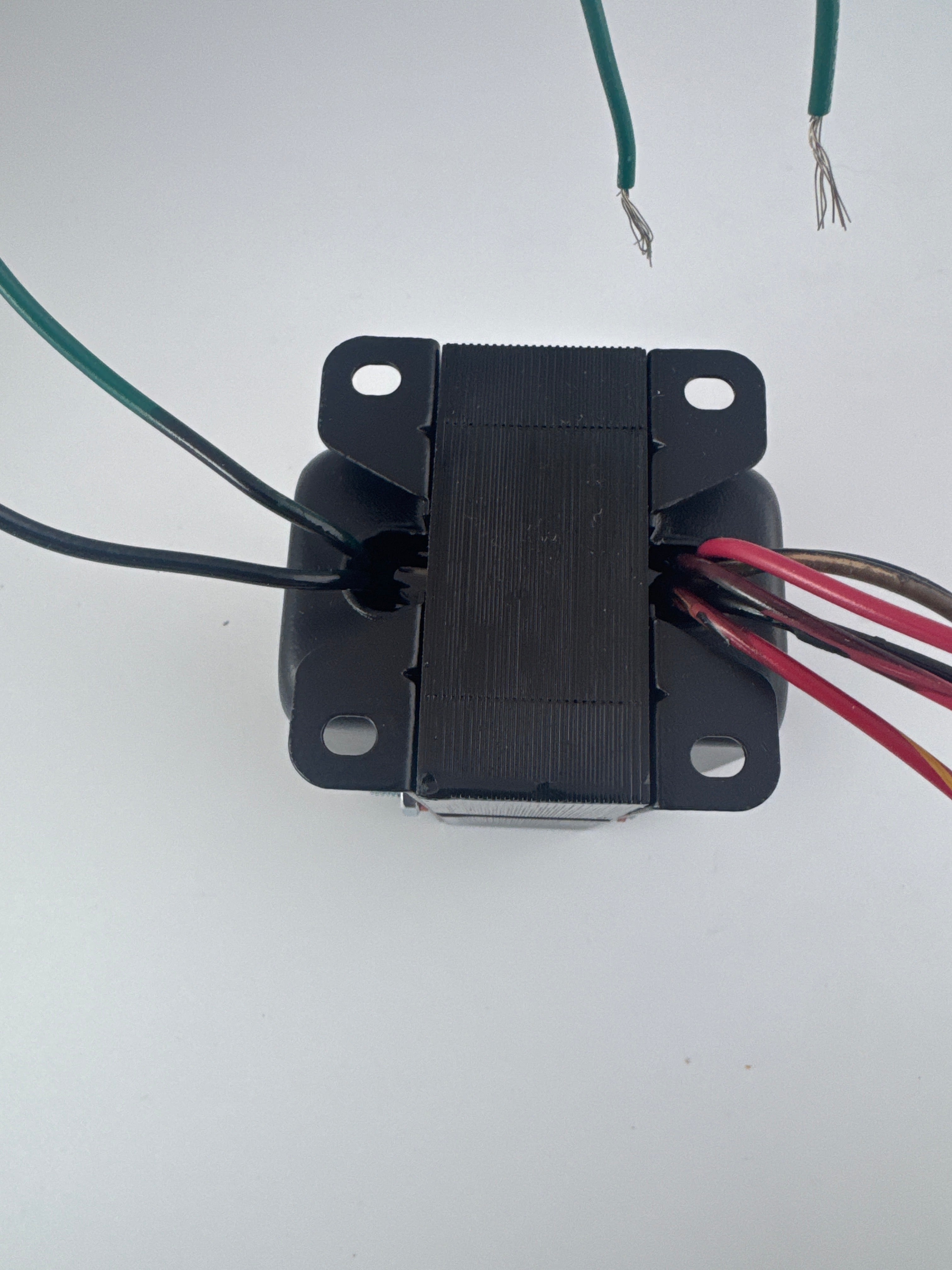

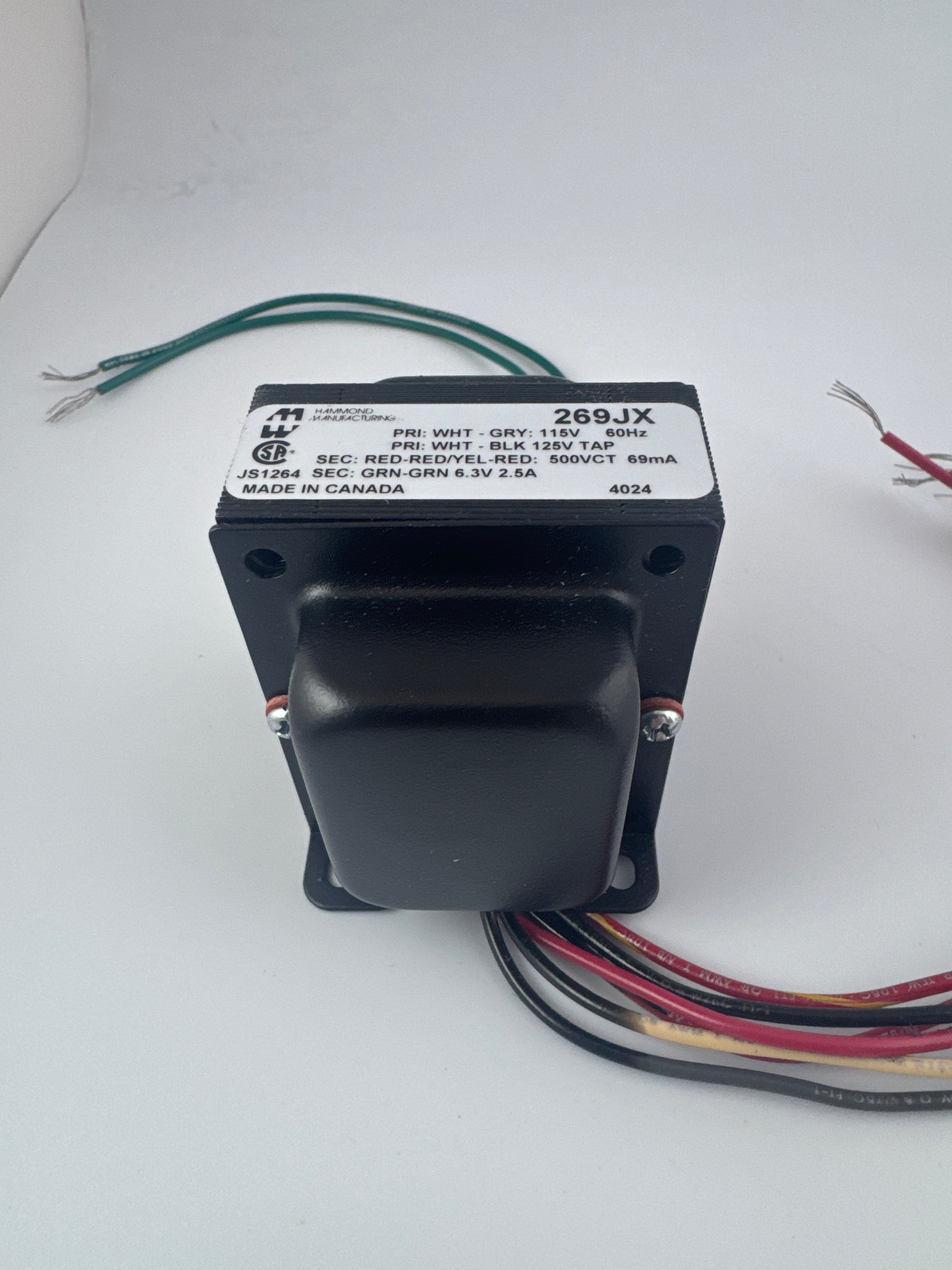

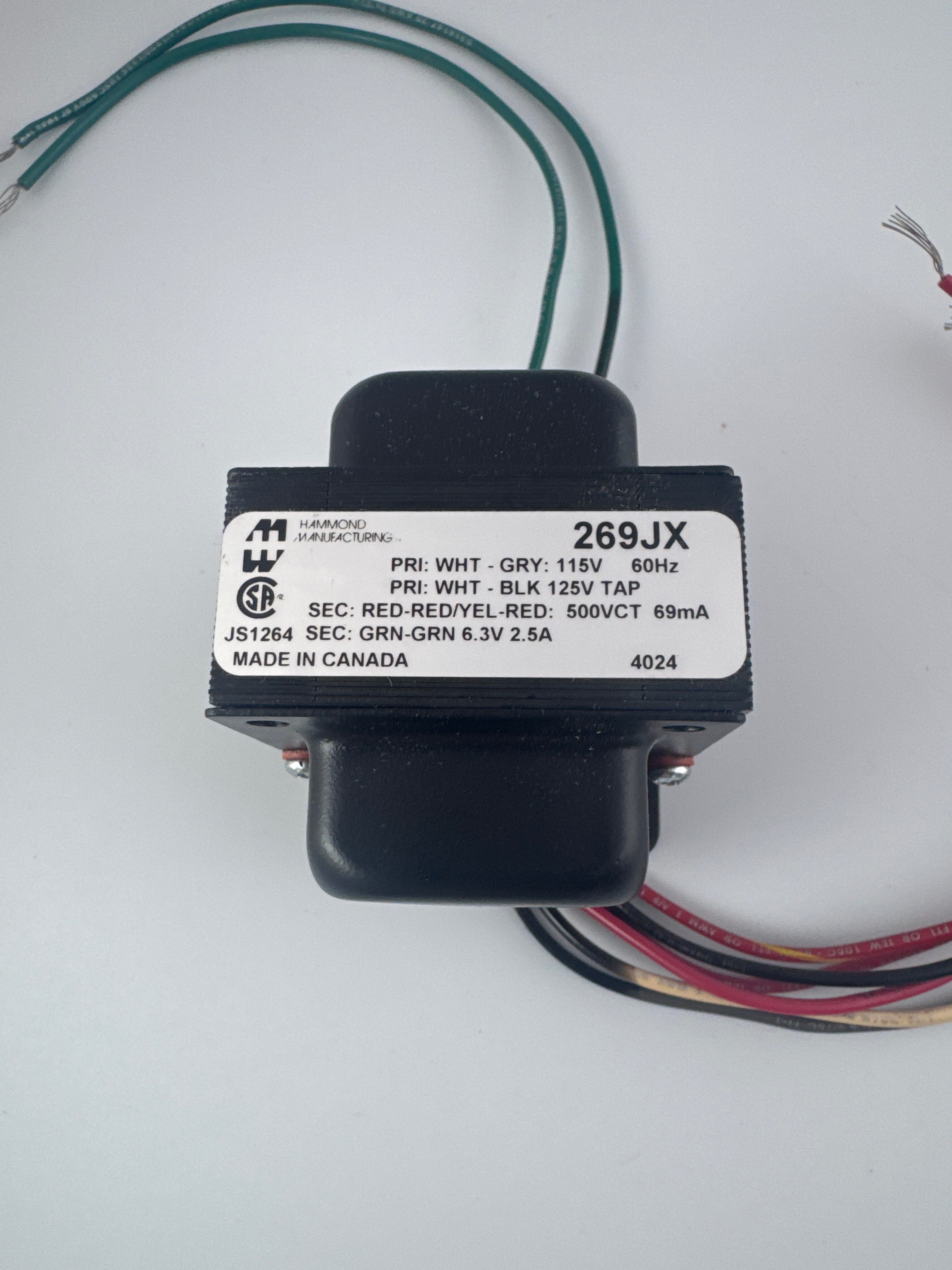

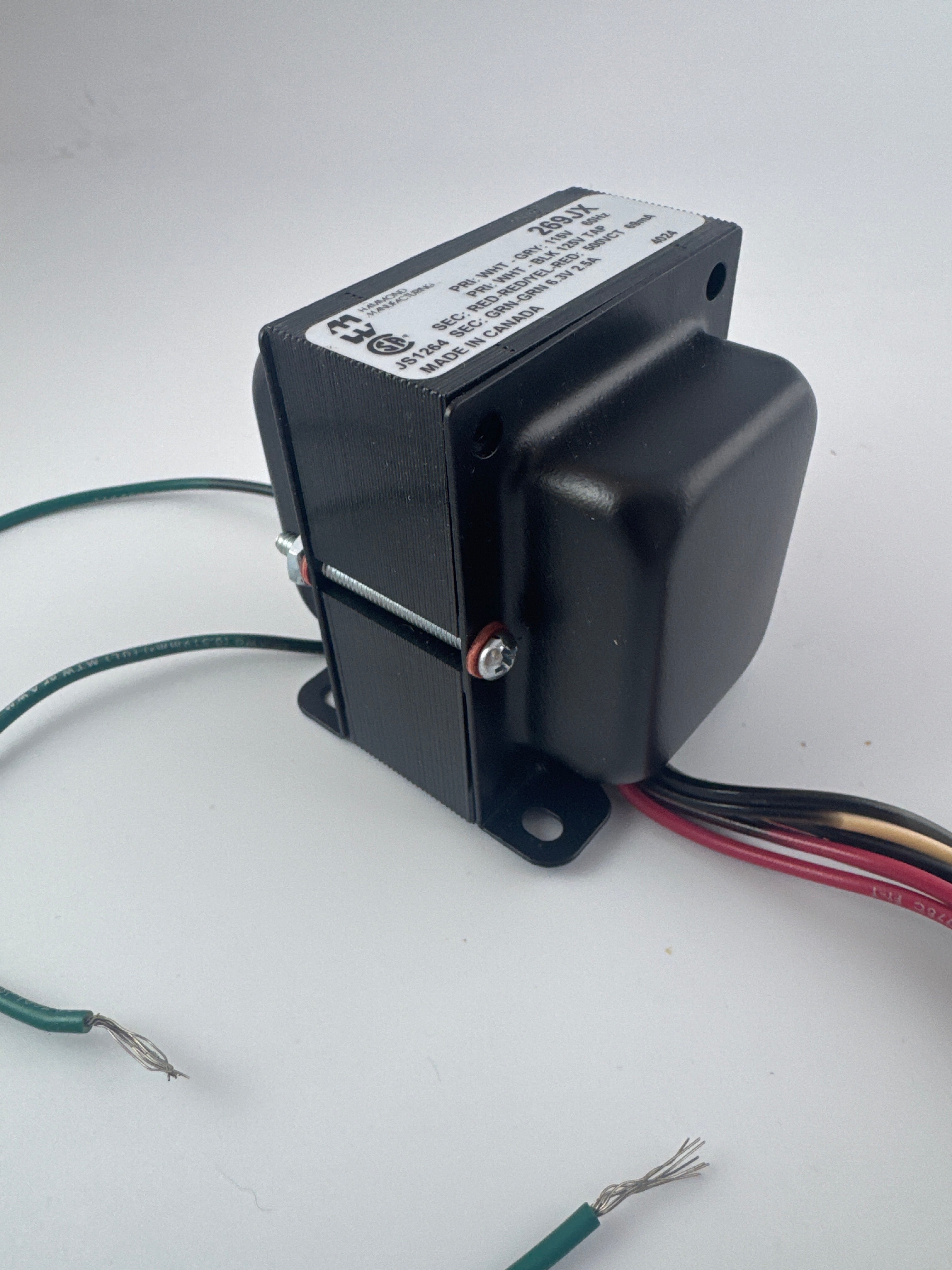

Description: Transformer - Hammond, High Voltage Plate & Filament, Vertical mount |
Vertical Mount. For Horizontal Mount, see P-T263-Z

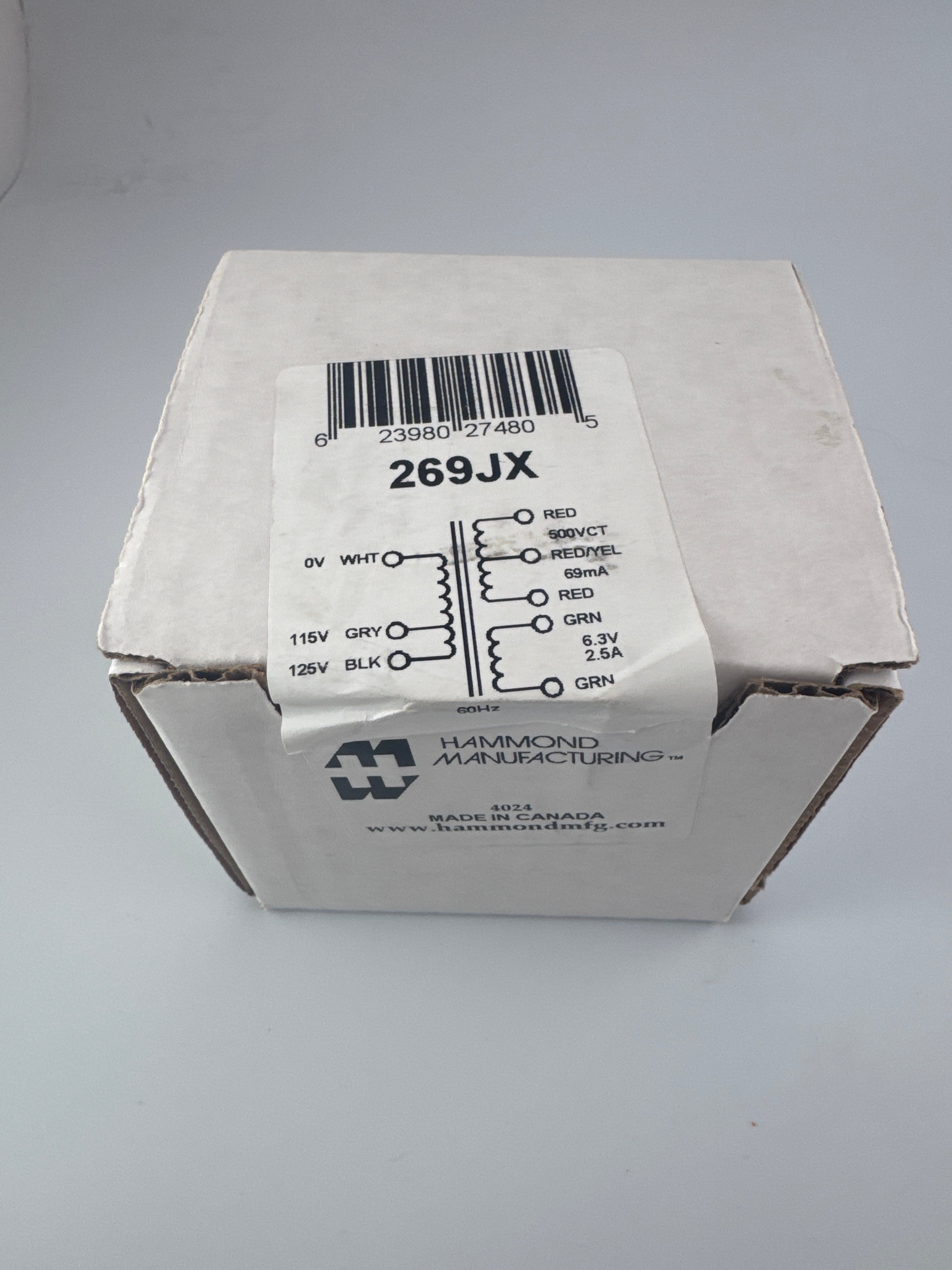

Choice #1 (115 VAC Input):For those customers who need the 115V input - nothing has changed - simply use the White & Gray wires and tape the Black wire (see above schematic). Note: Gray wire is actually BROWN on only our Part Number P-T278CX. Choice #2 (125 VAC Input):For those customers who are seeing too high a secondary voltage due to higher primary line voltages (roughly 125V input) - use the White & Black wire and tape the gray wire (see schematic). CAUTION: NEVER connect power to BOTH the GRAY & BLACK wire - instantaneous destruction of the transformer will result!Primary 50 VA 115 VAC 60HZSecondary AC High Voltages 500V C.T. @ 69 mA
Filament #1 - 6.3V @ 2.5A
|
| Classictone.net 40-18025, Classictone 40-18025, Classictone 40-18025, Classictone |
| Classictone 40-18025, Classictone 40-18025, Classictone, Classictone 40-18025 |
| Classictone 40-18025, Classictone 40-18025, Classictone.net 40-18025 |
