Transformer - Hammond - Low Voltage / Filament, Open, 24 VCT - APD-166M24

In Stock Unavailable

Regular price $62.00 Sale

Hurry! Only 2 left in stock.
2

Hammond Transformers
Premium guitar amplifier power transformers, output transformers and chokes.

Our Part# OEM Part# Type Rating
APD-166M24 P-T166M24 Low Voltage See Below




Alternates:

Reference#: P-T166M24

Description:

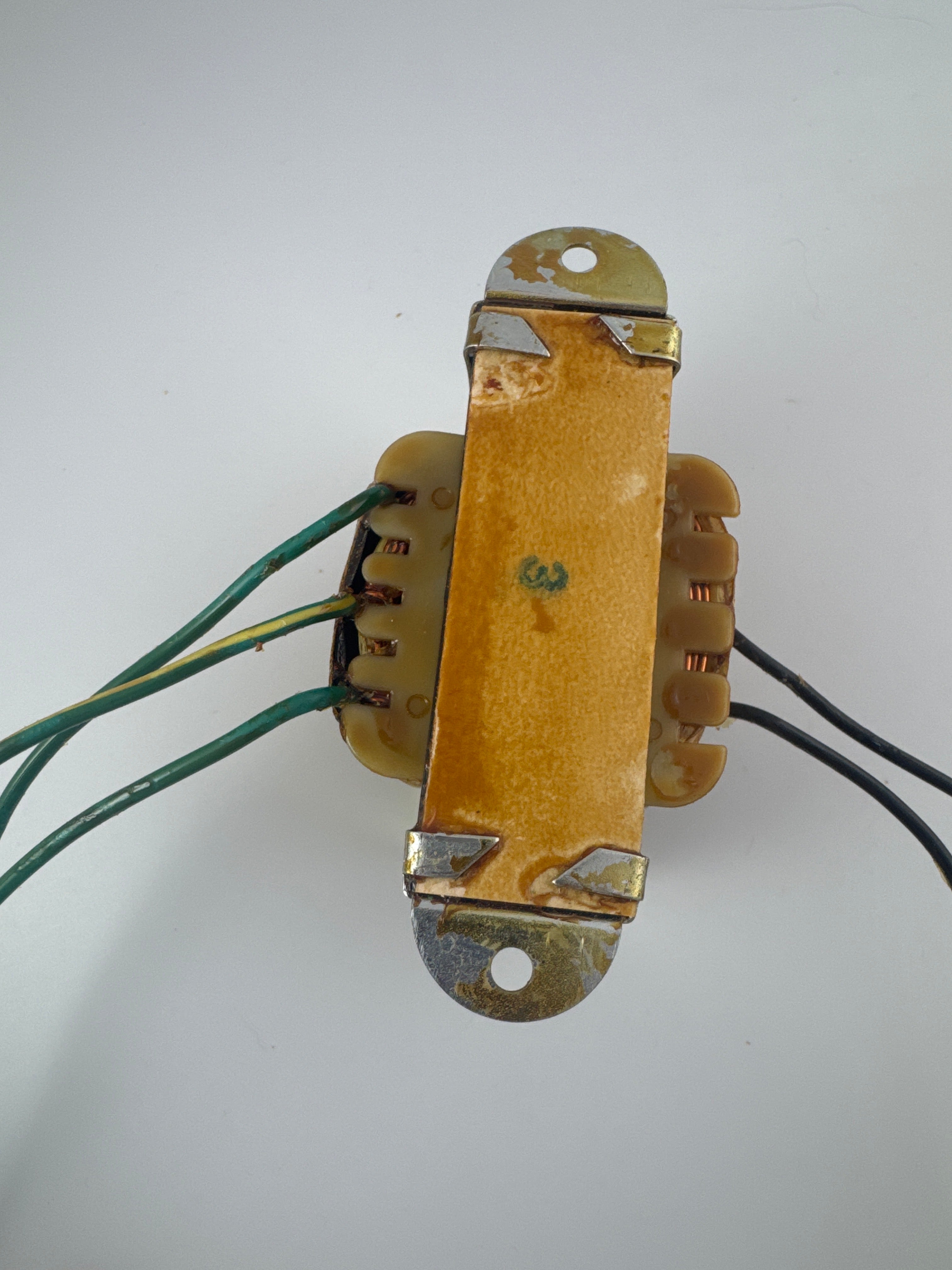

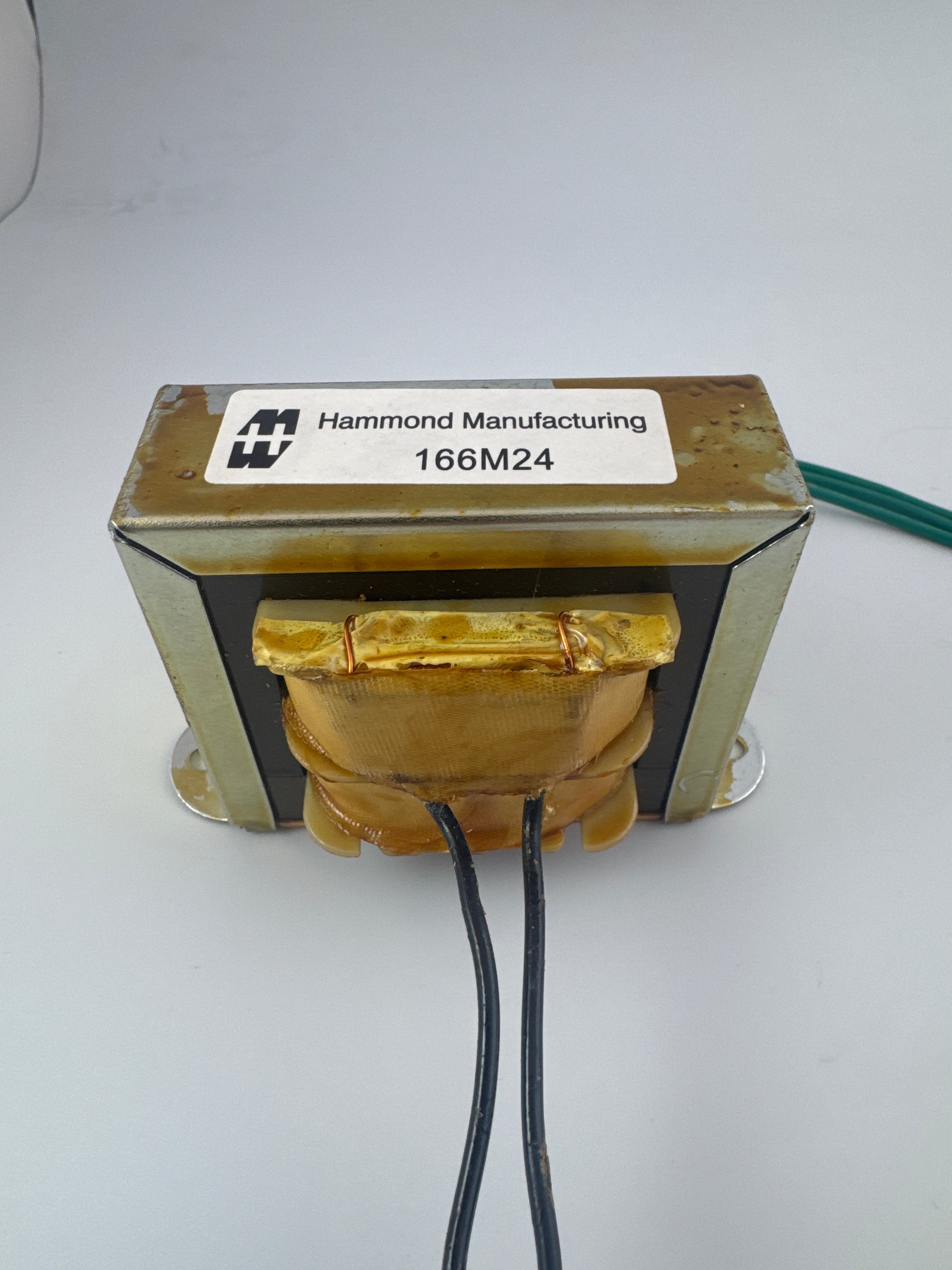

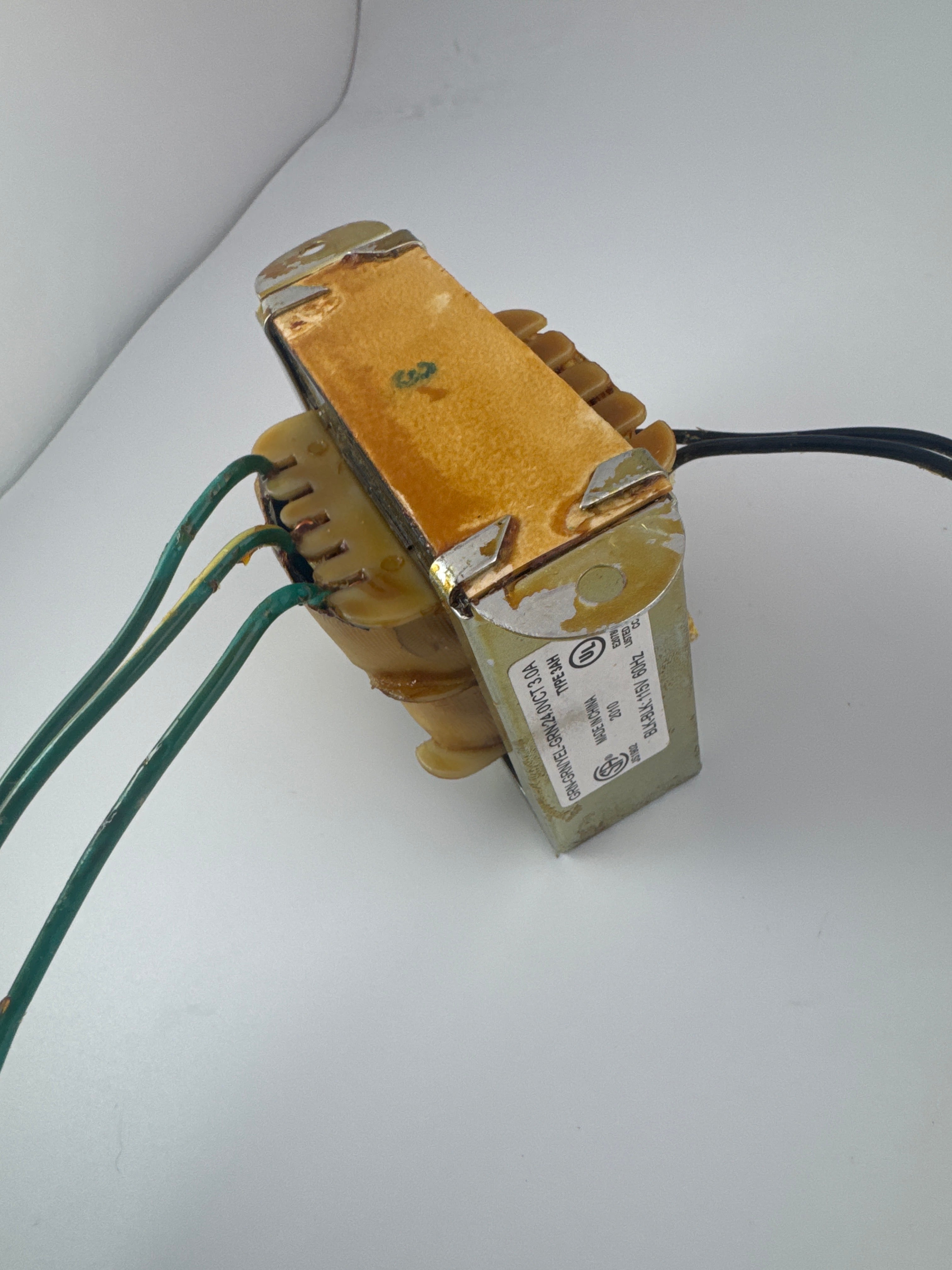

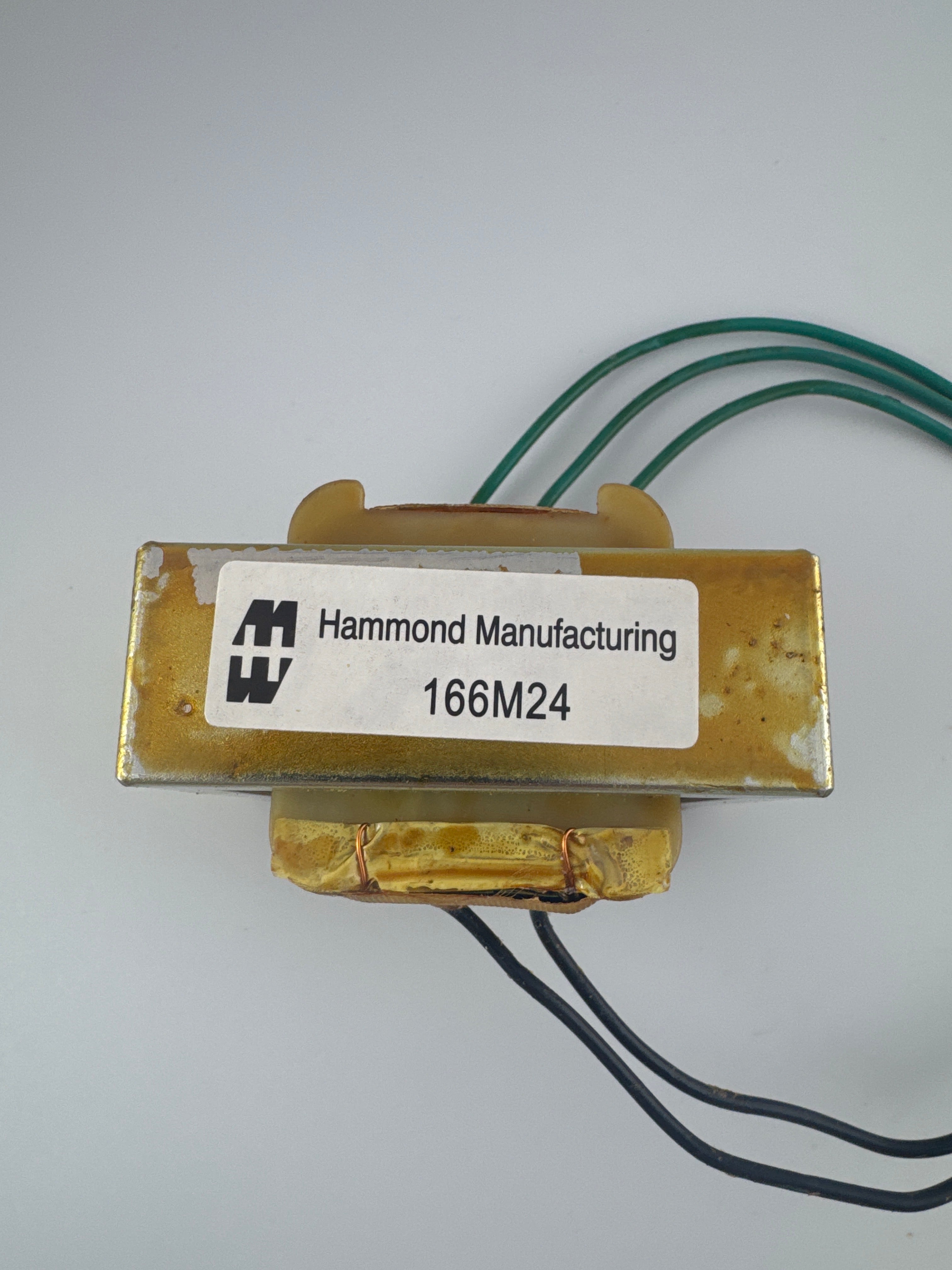

Transformer - Hammond, Low Voltage / Filament, Open, 24 VCT


  • Open Style, Chassis mount. Economical single primary 115 VAC, 60 Hz.
  • Secondary 24 C.T.
  • Center tapped secondary.
  • Open style, channel bracket, two hole chassis mount.
  • Minimum 6" long leads.
  • Dual bobbin design - no electrostatic shield required.
  • Class B insulation (130 degrees, C).
  • Hi-Pot test of 2,000 V RMS.
  • UL listed (# E50394) & CSA certified (# LR3902).


Primary 72 VA   115 VAC  60HZ

Secondary  (R.M.S.)  24 C.T. @ 3A




Classictone.net 40-18025, Classictone 40-18025, Classictone 40-18025, Classictone
 Classictone 40-18025, Classictone 40-18025, Classictone, Classictone 40-18025
 Classictone 40-18025, Classictone 40-18025, Classictone.net 40-18025



Return Policy
Because these are electronic components, returns are only accepted on Damaged, DOA or Unused units only.
Return shipping costs are the responsibility of the purchaser.
Prior approval is required for all returns. Contact Sales for an RMA Number.
Returns are subject to a restocking fee equal to any Credit Card, eBay or PayPal fees associated with the original transaction.



*Disclaimer: All of the above listed amplifier models are trademarks of their original manufacturers.
